Customized AMS SERIES HEAT FLUX SENSOR

Update time：2021-06-18 14:59:01

Product number：AMS-25

Category：Heat flux sensor

Description：Schmidt-Boelter sensor Measuring ranges up to 200 kW/m2 Applications for wind tunnel testing, fire testing, and rocket engine testing. Heat flux standards for flammability testing on many ASTM and ISO test specifications, such as ASTM C-739, ASTM E-648, ASTM E-970, ASTM E-1317, ASTM E-1321.

E-Mail:790895870@qq.com Order

Detail intruduction

Provide customized heat flux sensor service

AMS SERIES HEAT FLUX SENSOR

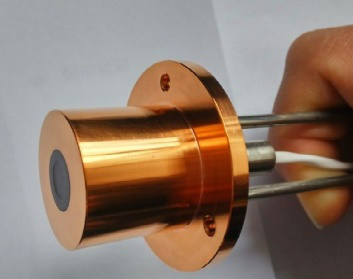

AMS Series heat flux sensor has a linear Schmidt-Boelter thermopile that generates a millivolt output directly proportional to the net absorbed heat transfer rate to the thermopile sensing element. The sensitive portion of the sensor is at the center of the diameter front face of the transducer. Schmidt-Boelter thermopiles absorb heat at the front surface and transfer the heat into the body normal to the absorbing surface. The difference in temperature that generates the output EMF is developed between the sensor surface and the body plane beneath the surface. The transducer is shipped with an optical black coating on the sensor. Since the transducer operates as a differential thermopile no thermoelectric reference junction is required.

SPECIFICATIONS

Standard ranges	0.5, 1, 2, 3, 5, 10, 20, 50, 100, 150, 200 kW/m² (Other ranges available on request)
Output signal	Linear, nominal 10 to 20 millivolts at full range
Maximum allowable operating body temperature	204 ℃.
Over-range capability	to 150% F.S.
Maximum non-linearity	±2% F.S.
Repeatability	±0.5%
Expanded uncertainty of the calibration	±3% with coverage factor k=2, for a confidence level of approximately 95%.
Sensor coating absorptance	0.95 average hemispherical, from 0.3 to 15 μm.
Lead wire	High temperature cable with transition to a flexible extension of stranded plated copper, twisted pair, Teflon insulation over each wire, plated copper braid shield over both, Teflon jacket overall
Sensor type	Schmidt-Boelter thermopile.
Nominal output resistance	Less than 100 ohms.
