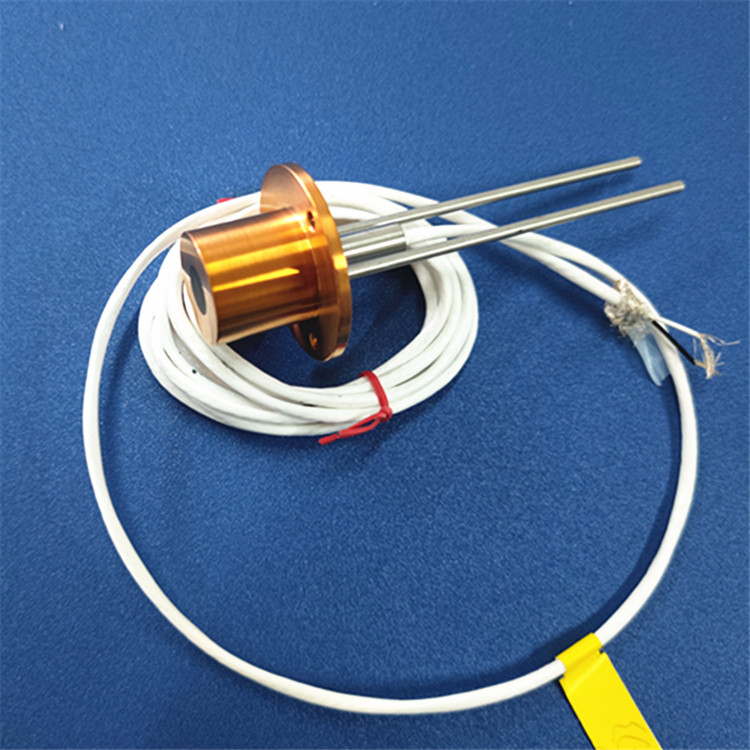

MW heat flux transducers

Due to the large range of MW heat flux transducers. AWG-25 series must be adopted,  which can also be called  Gardon heat flux transducers.

Characteristics of MW heat flux transducers AWG-25 series:

1)Water cooling series, continuous refrigeration, can be measured for a long time, no exposure time limit;

2)The output is a linear signal, and the output is not affected by temperature;

3)Measurement of radiant heat flux and convective heat flux;

4)Optional window to measure pure radiant heat flux;

5)The measurement accuracy is high, and the accuracy is better than 3%

AWG-25 application scenaries:

It can measure the heat flux of high-temperature boiler and combustion chamber；

Measurement of radiant heat flux (laser, explosion, etc.) of high temperature heat source；

Engine and engine heat loss measurement；

Power output of rocket and jet engine；

Specific parameters are as follows：

Standard diameter: 25mm (other sizes can be customized);

Standard length: 25mm (other sizes can be customized);

Optional range: from 1000 to 20000 (kW / m2);

accuracy: ± 3% (greater than 3MW, accuracy: ± 5%);

Output signal：Linear, nominal 10 to 20 millivolts at full range

Over-range capability： to 150% F.S.

Sensor type：Gardon

Nominal output resistance： Less than 5 ohms

Our company is a professional manufacturer of heat flux transducers, which can be customized according to your working conditions.

If you have any questions related to heat flux, you can email us at any time.
