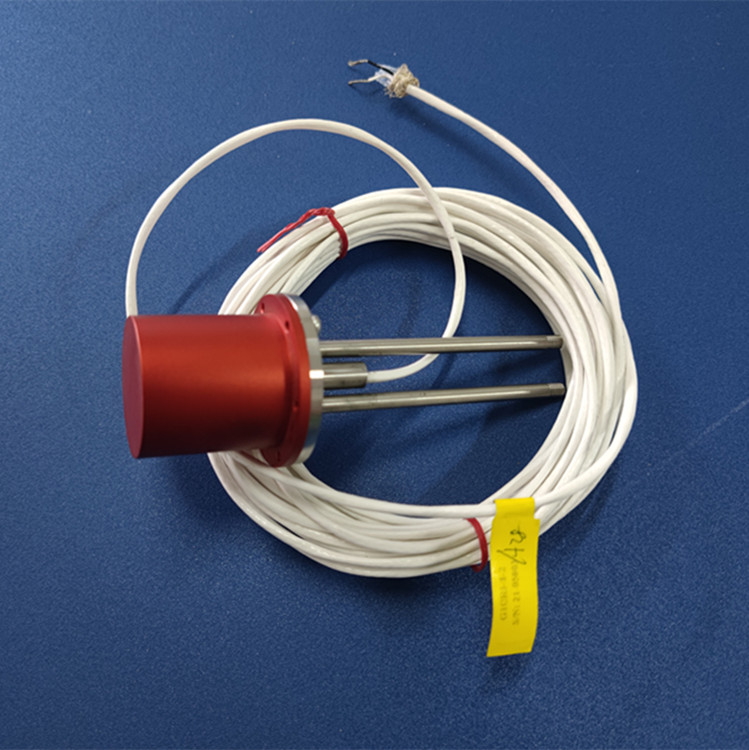

Due to the large range of MW heat flow sensors,AWG-25 series must be adopted, these are, Gordon type, which can also be called Gardon heat flow sensors.
Characteristics of MW heat flow sensor AWG-25 series:
1)Water cooling series, continuous refrigeration, can be measured for a long time, no exposure time limit;
2)The output is a linear signal, and the output is not affected by temperature;
3)Measurement of radiant heat flux and convective heat flux;
4)Optional window to measure pure radiant heat flow;
5)The measurement accuracy is high, and the accuracy is better than 3%
AWG-25 application scenaries:
It can measure the heat flow of high-temperature boiler and combustion chamber;
Measurement of radiant heat flow (laser, explosion, etc.) of high temperature heat source;
Engine and engine heat loss measurement;
Power output of rocket and jet engine;
Specific parameters are as follows:
Standard diameter: 25mm (other sizes can be customized);
Standard length: 25mm (other sizes can be customized);
Optional range: from 1000 to 20000 (kW / m2);
accuracy: ± 3% (greater than 3MW, accuracy: ± 5%);
Output signal:Linear, nominal 10 to 20 millivolts at full range
Over-range capability: to 150% F.S.
Sensor type:Gardon
Nominal output resistance: Less than 5 ohms
Our company is a professional manufacturer of heat flow sensors, which can be customized according to your working conditions.
If you have any questions related to heat flow, you can email us at any time.
