Gardon circular-foil Heat Flux transducer

Gardon circular-foil Heat Flux transducer

Update time:2021-06-18 17:56:34
Product number:
Category:Heat flux sensor
Description:Gardon Heat Flux transducer GTT-25 series adopts classic round foil design, also known as circular-foil heat flux transducer.
Detail intruduction

The Gardon Heat Flux transducer forms a thermocouple by measuring the temperature difference between the center and circumference of a circular foil disc. The standard foil tray is made of Constantan and the heat sink is made of copper. These materials produce an output proportional to the absorbed heat flow. Continuously absorb heat through the removal of water.

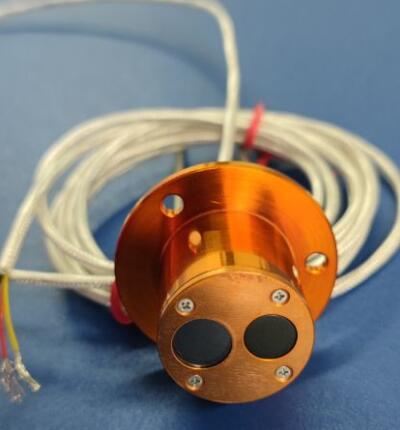

Gardon Heat Flux transducer



Features of Gardon Heat Flux transducer:
Water-cooled series, continuous refrigeration, can be measured for a long time, no exposure time limit
The output is a linear signal, the output is not affected by temperature
Measure radiant heat flow and convective heat flow
Optional window to measure pure radiant heat flow
High measurement accuracy, accuracy better than 3%



Application of Gardon Heat Flux transducer:
Heat flow of blast furnace and boiler, power output of boiler and combustion chamber
Standardization of high-temperature heat sources, measurement of radiant heat flow (laser, explosion, etc...) of high-temperature heat sources
Engine and engine heat loss measurement, combustion chamber heat flow measurement, rocket and jet engine power output
Aviation and Space Science
Fire, combustion test and performance test of protective equipment
Process control (under conditions, such as: glass manufacturing, flame, furnace, etc.)



Technical parameters of Gardon Heat Flux transducer:
Standard diameter: 25mm (other sizes can be customized)
Standard length: 25mm (other sizes can be customized)
Optional range: 2000, 1000, 500, 300, 250, 200, 150, 100, 50, 20, 10, 5, 2 (kW/m2)
Accuracy: ±3%



Gardon Heat Flux transducer has a variety of host types to choose from, single-channel, 8-channel, 16-channel and more.


After nearly 10 years of accumulation of electronic technology, there are more different structures, different sizes of radiant heat flow meters, total heat flow meters, etc., suitable for different heat flow testing occasions. You are welcome to discuss your specific applications at any time.

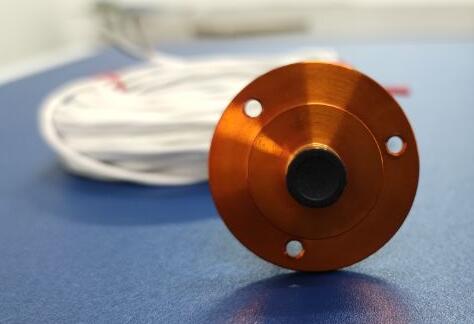

circular-foil Heat Flux transducer
