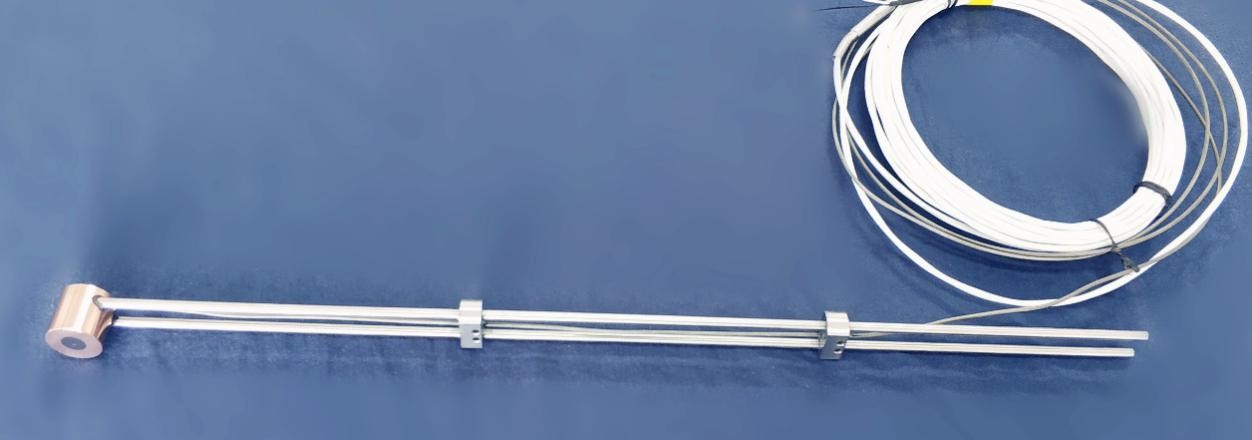

AWG SERIES HEAT FLUX SENSOR

Update time：2020-11-20 11:10:36

Product number：AWG-25

Category：Heat flux sensor

Description： Gardon transducer  Measuring ranges up to 20MW/m2  Applications for wind tunnel testing, fire testing, and rocket engine testing  90° angle probe head

E-Mail:790895870@qq.com Order

Detail intruduction

AWG SERIES heat flux sensor is a Gardon-type heat flux gauge with a circular constantan foil coated with absorbing coating attached to a copper heat sink. When the Gardon gauge is used to measure radiation flux, the thermal radiation is uniformly incident onto the gauge foil surface, and there is a temperature gradient in the radial direction so that the metal leads attached to the foil center and the edge form a thermocouple joint. The voltage output of the Gardon gauge from this thermocouple joint is linearly proportional to the incident heat flux in the steady-state heat flux conditions. The ratio of the voltage output to the measured heat flux is defined as the measurement sensitivity of the heat flux gauge。

SPECIFICATIONS

Standard ranges	50, 100, 200, 300, 500, 1000, 2000, 5000, 10000, 15000, 20000 kW/m (Other ranges available on request)
Output signal	Linear, nominal 10 to 20 millivolts at full range
Maximum allowable operating body temperature	204 ℃
Over-range capability	to 150% F.S.
Maximum non-linearity	±2% F.S.
Repeatability	±0.5%
Expanded uncertainty of the calibration	±3% with coverage factor k=2, for a confidence level of approximately 95%.
Sensor coating absorptance	0.95 average hemispherical, from 0.3 to 15 μm.
Lead wire	SST sheathed, MgO insulated, high temperature cable with transition to a flexible extension of stranded plated copper, twisted pair, Teflon insulation over each wire, plated copper braid shield over both, Teflon jacket overall
Sensor type	Gardon
Nominal output resistance	Less than 5 ohms.
